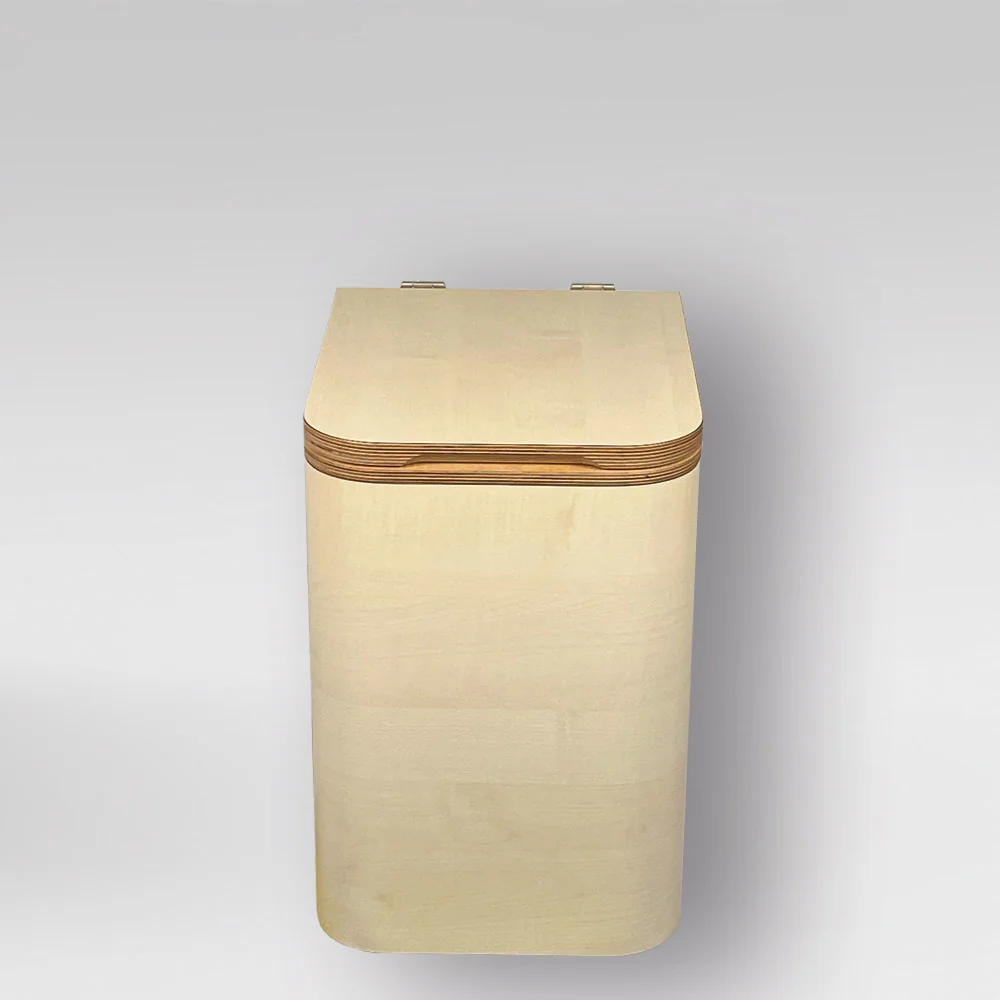

Trelino® Timber L • Composting toilet

Trelino® Timber L composting toilet
with quality HPL finish

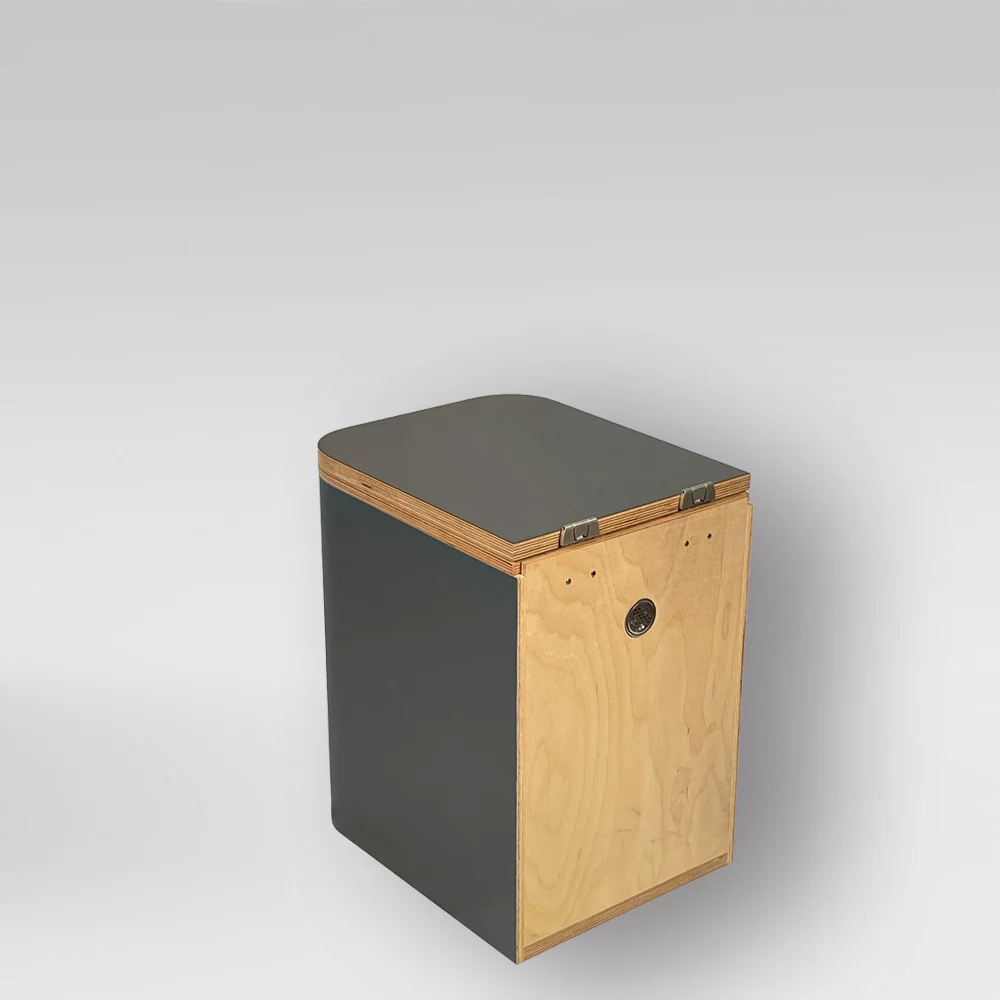

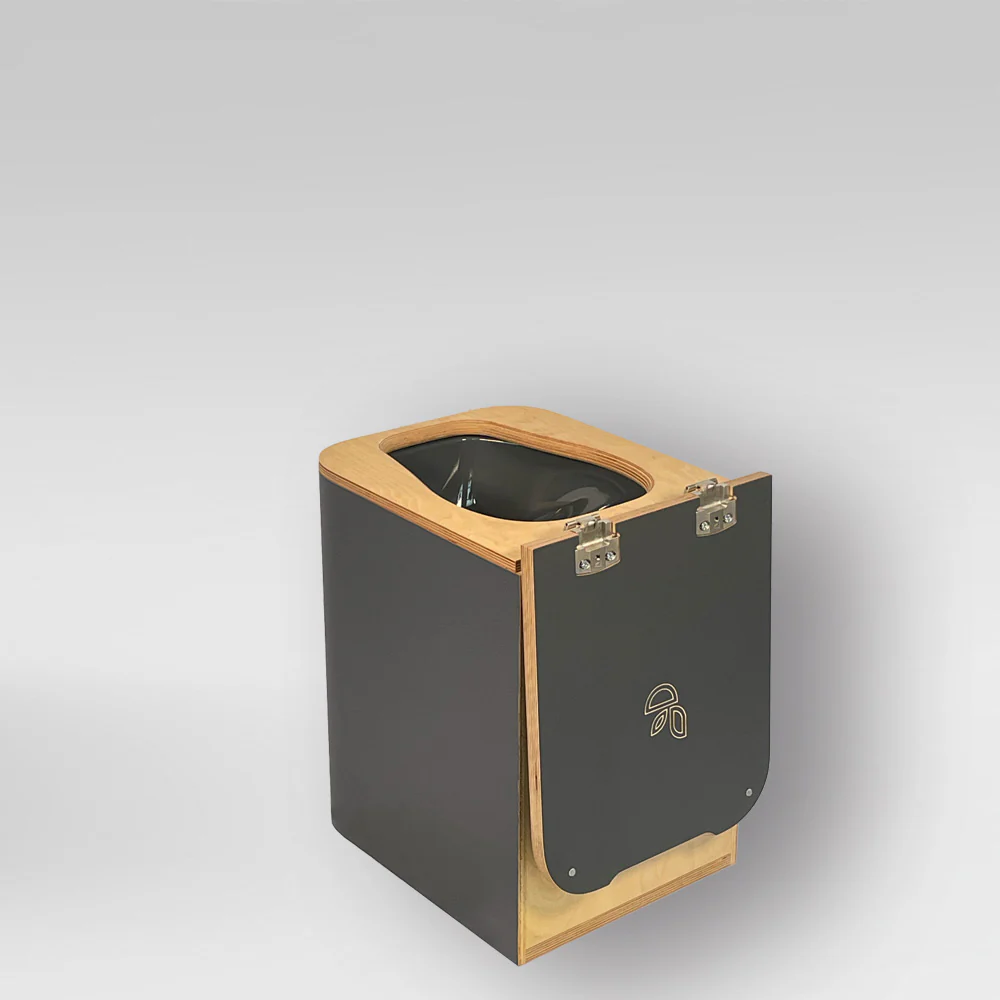

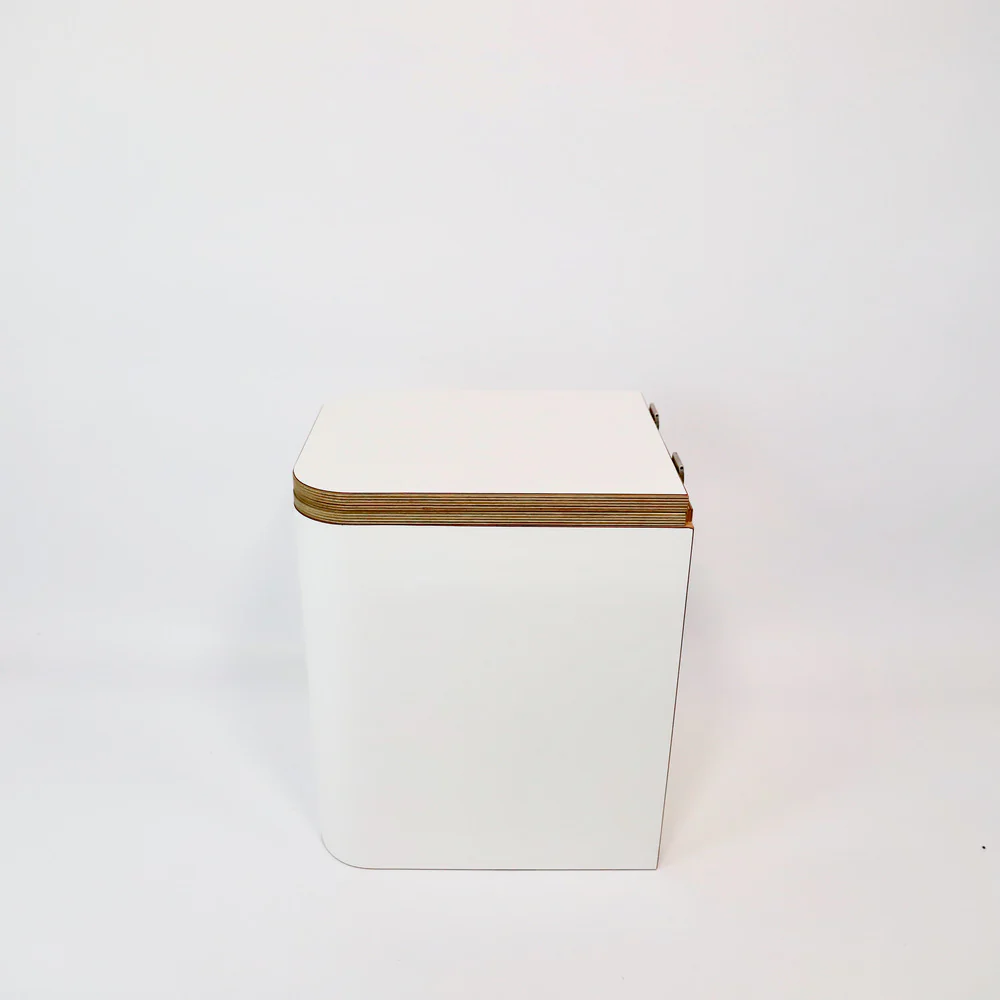

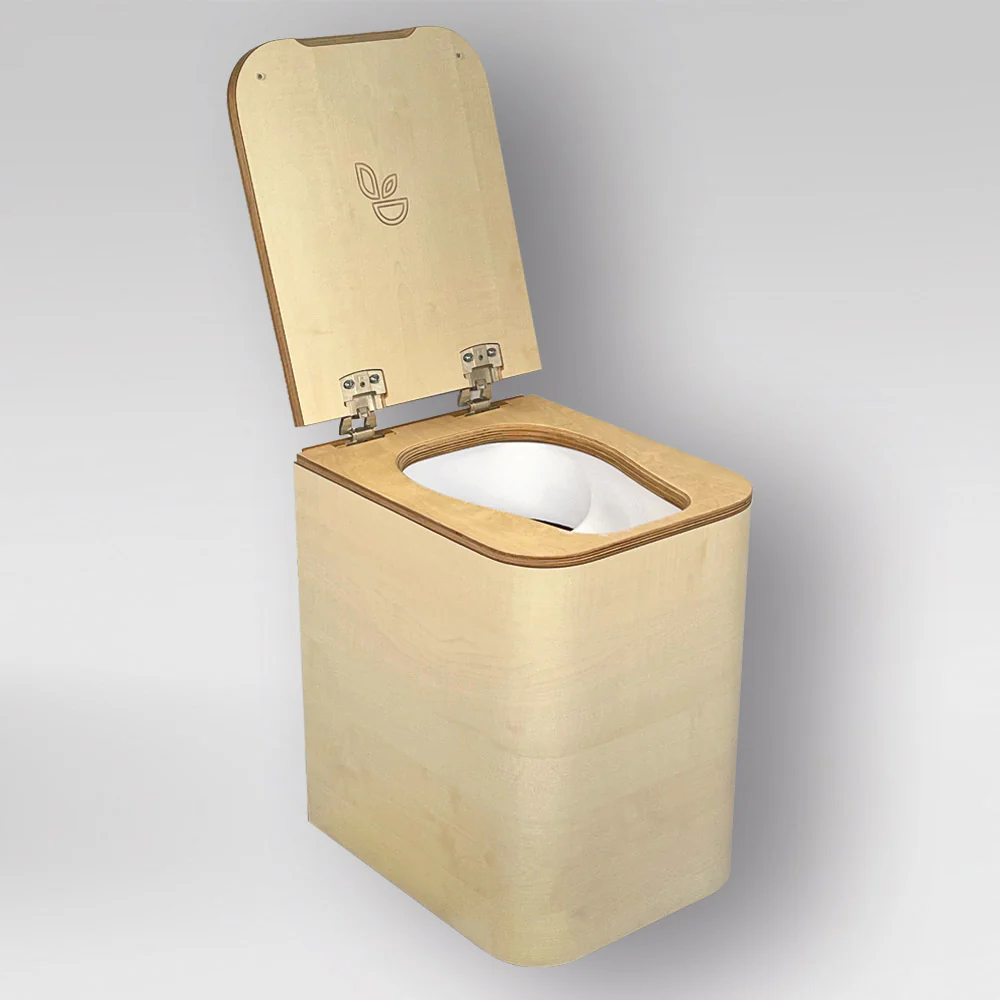

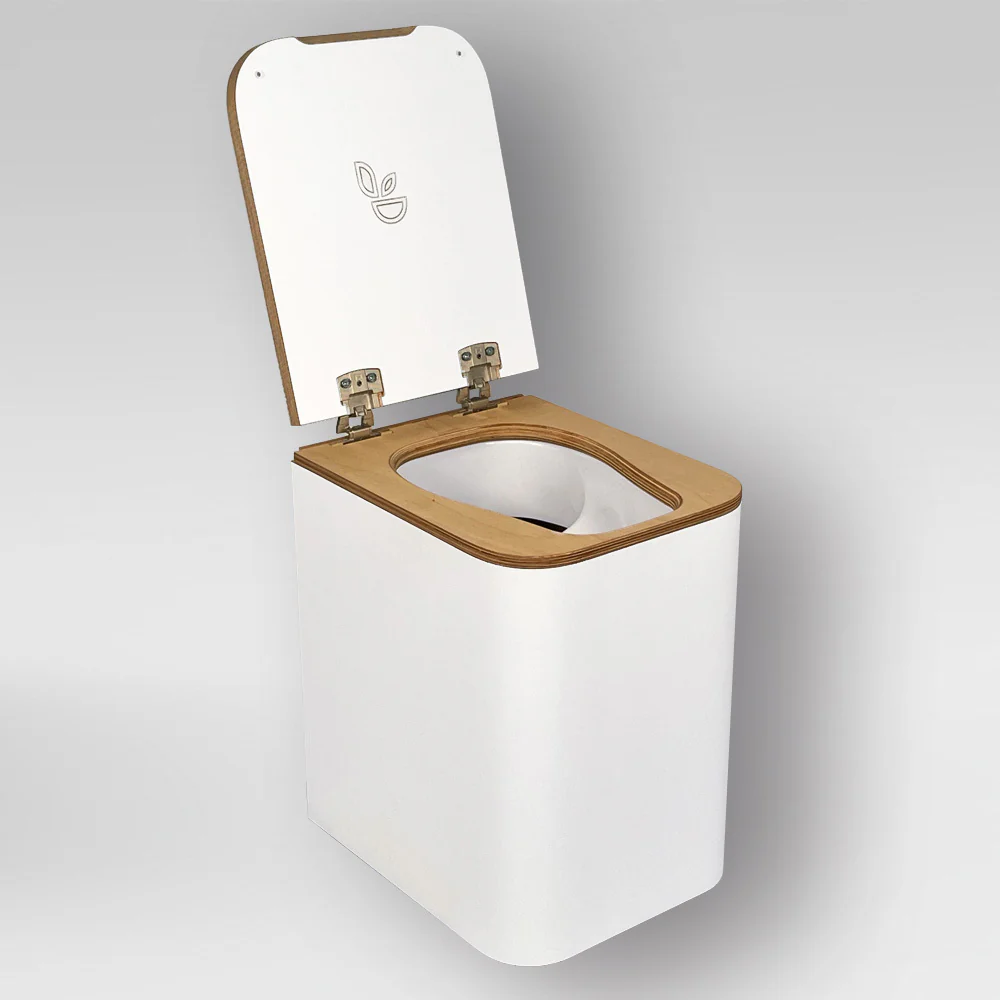

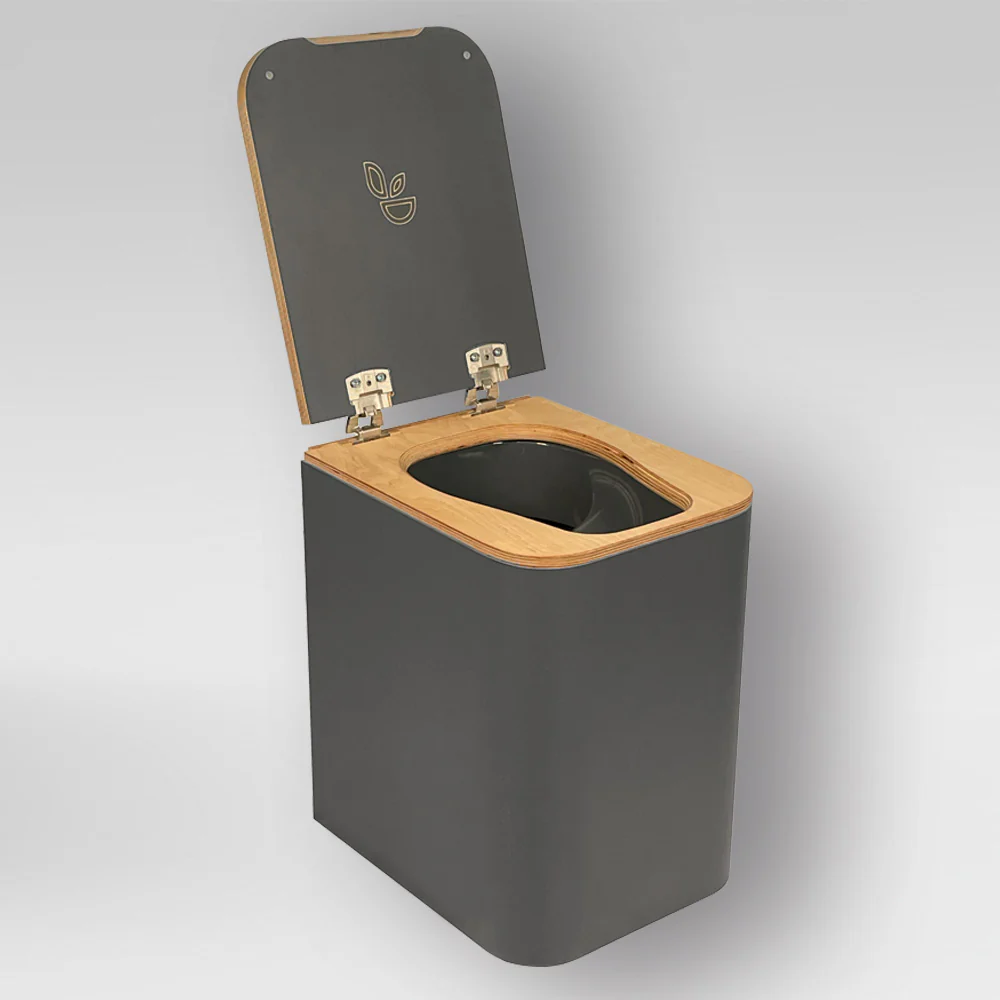

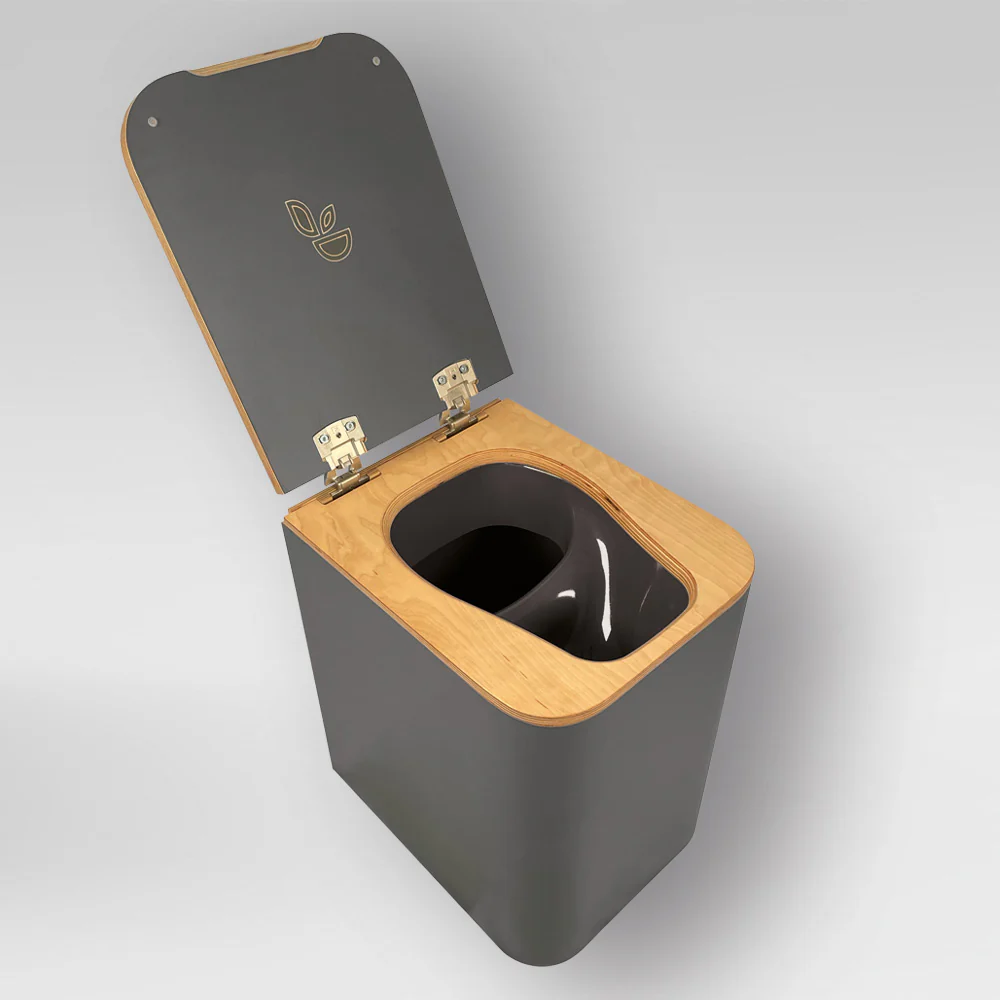

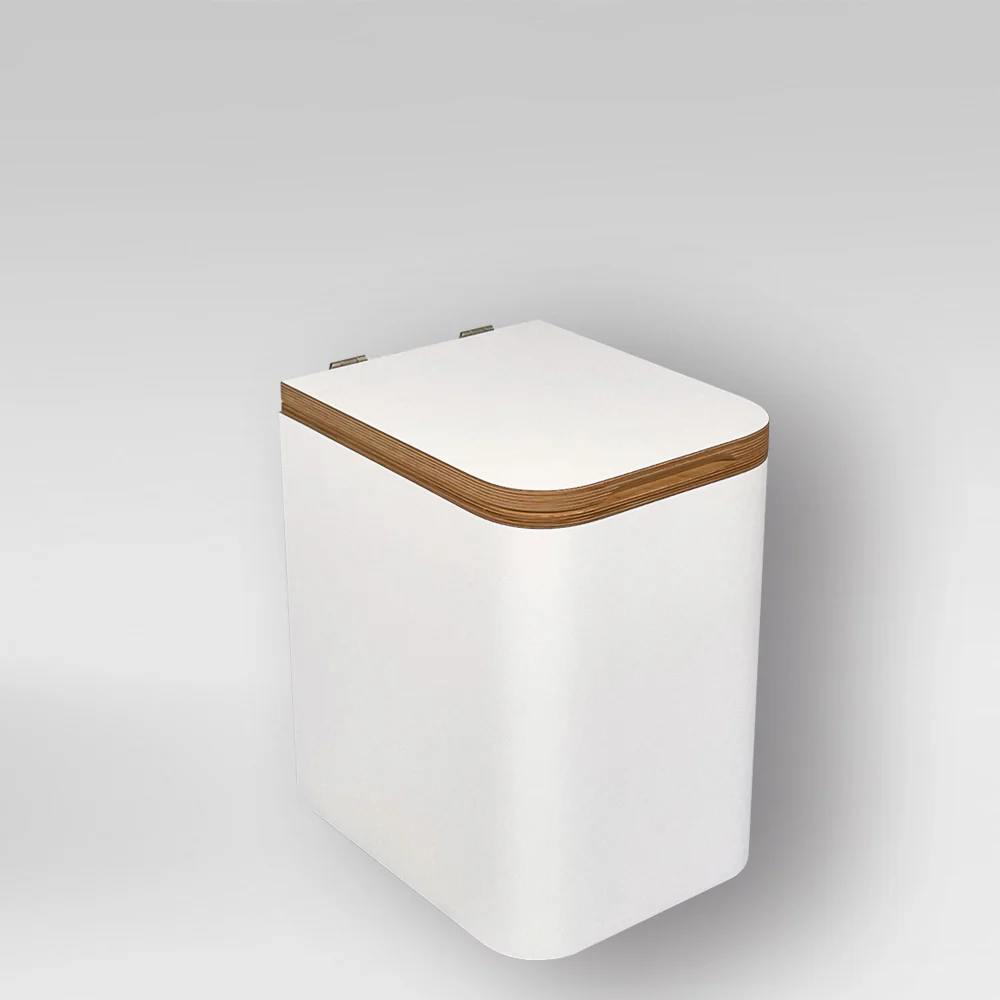

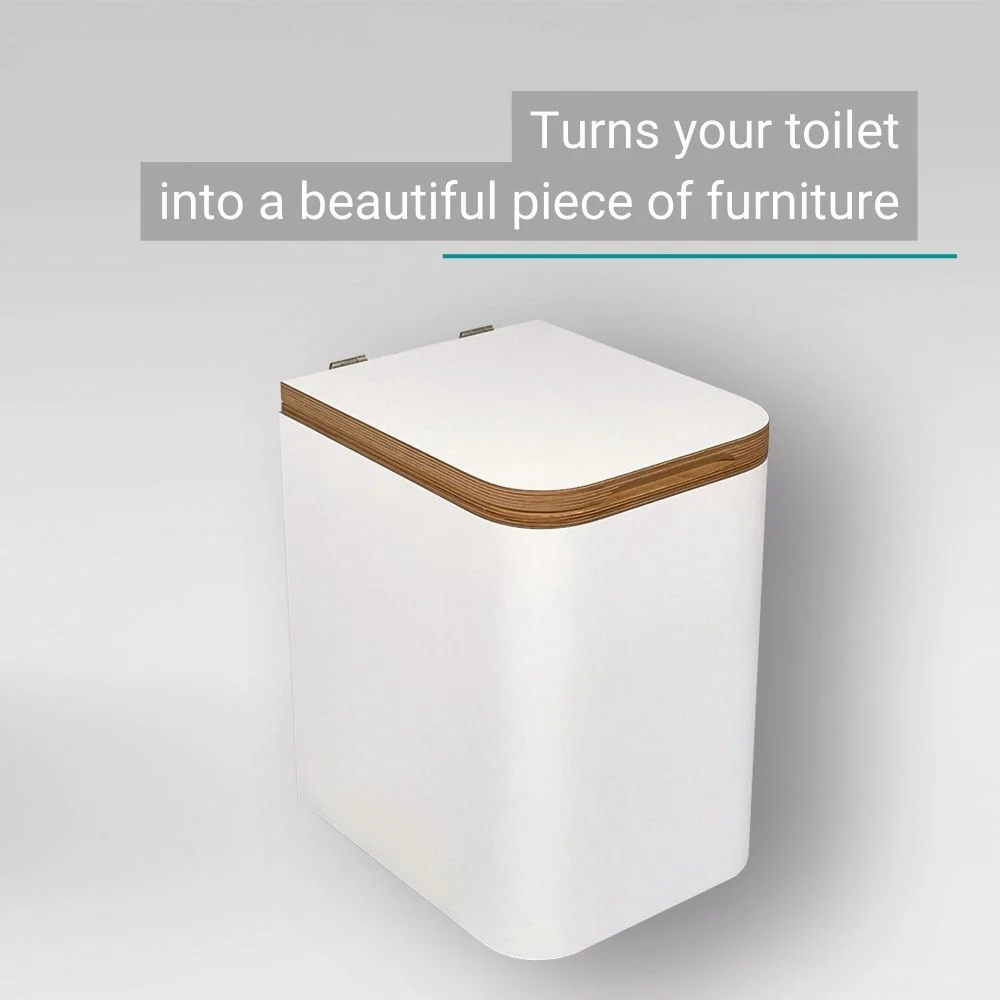

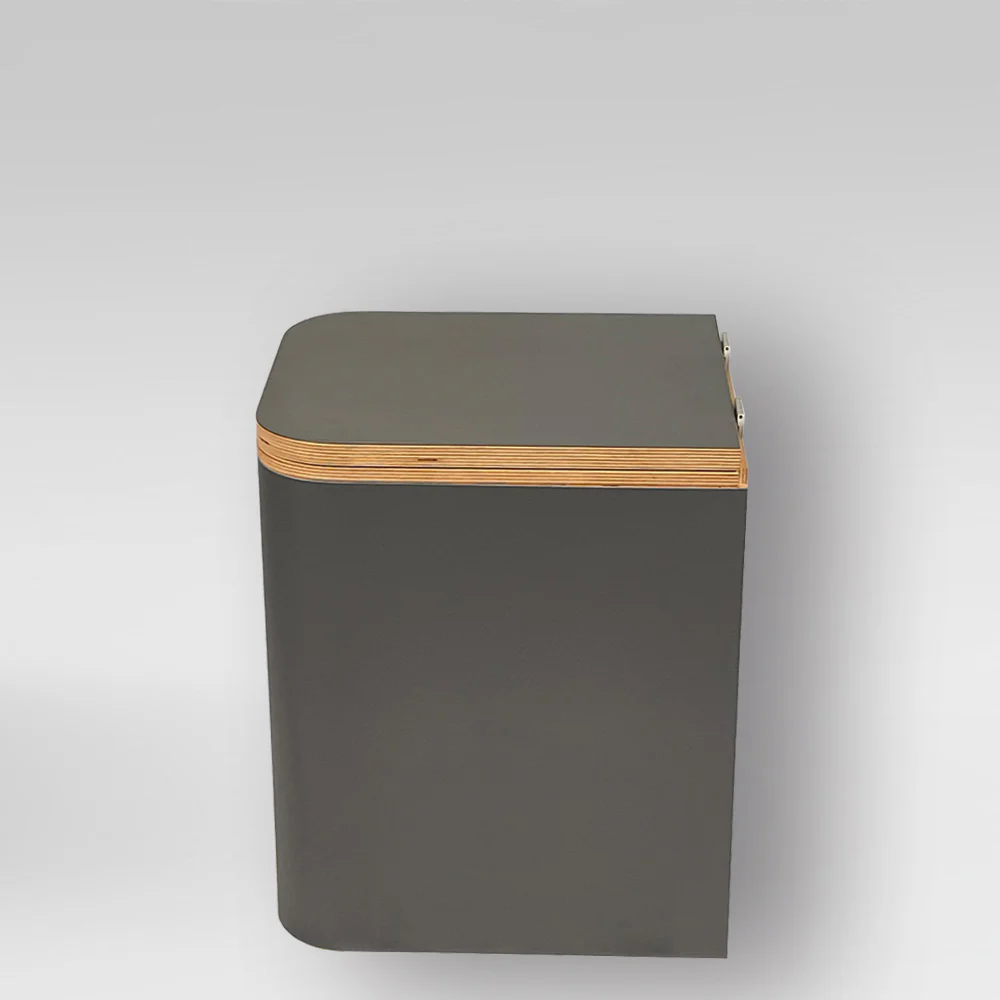

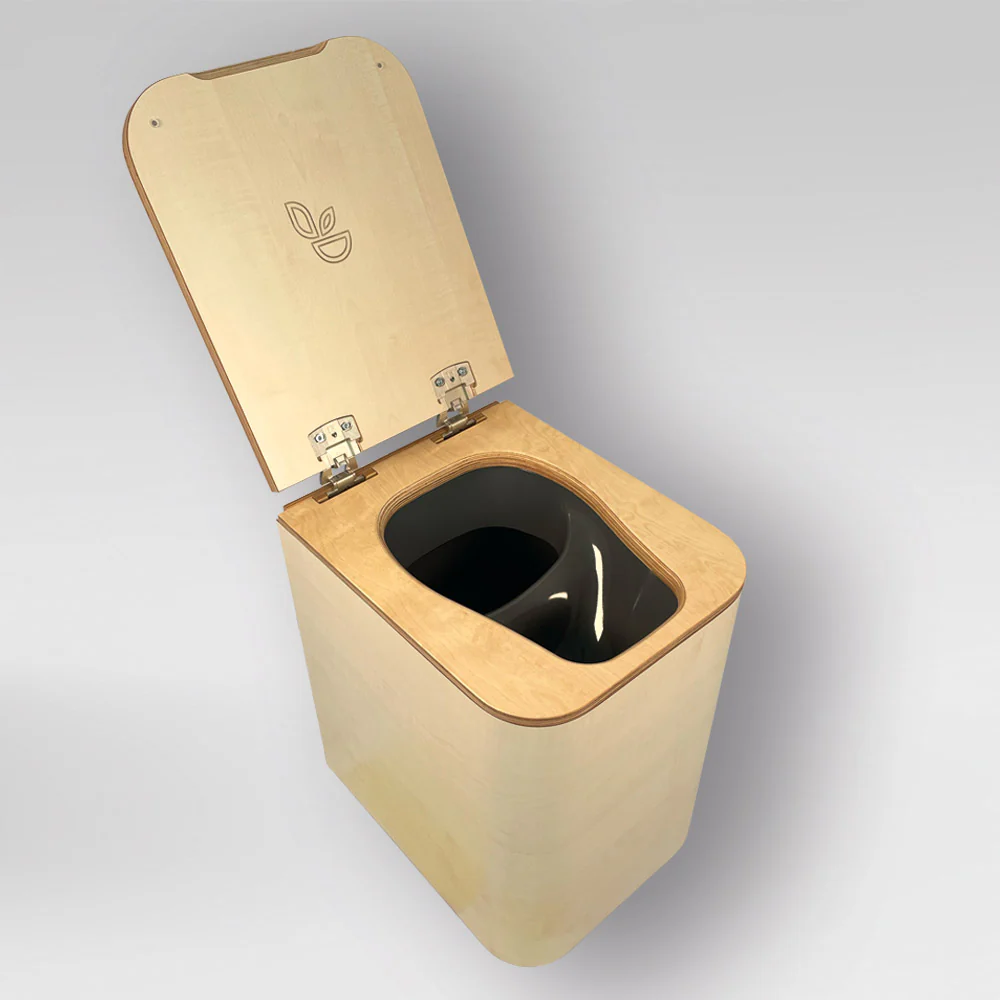

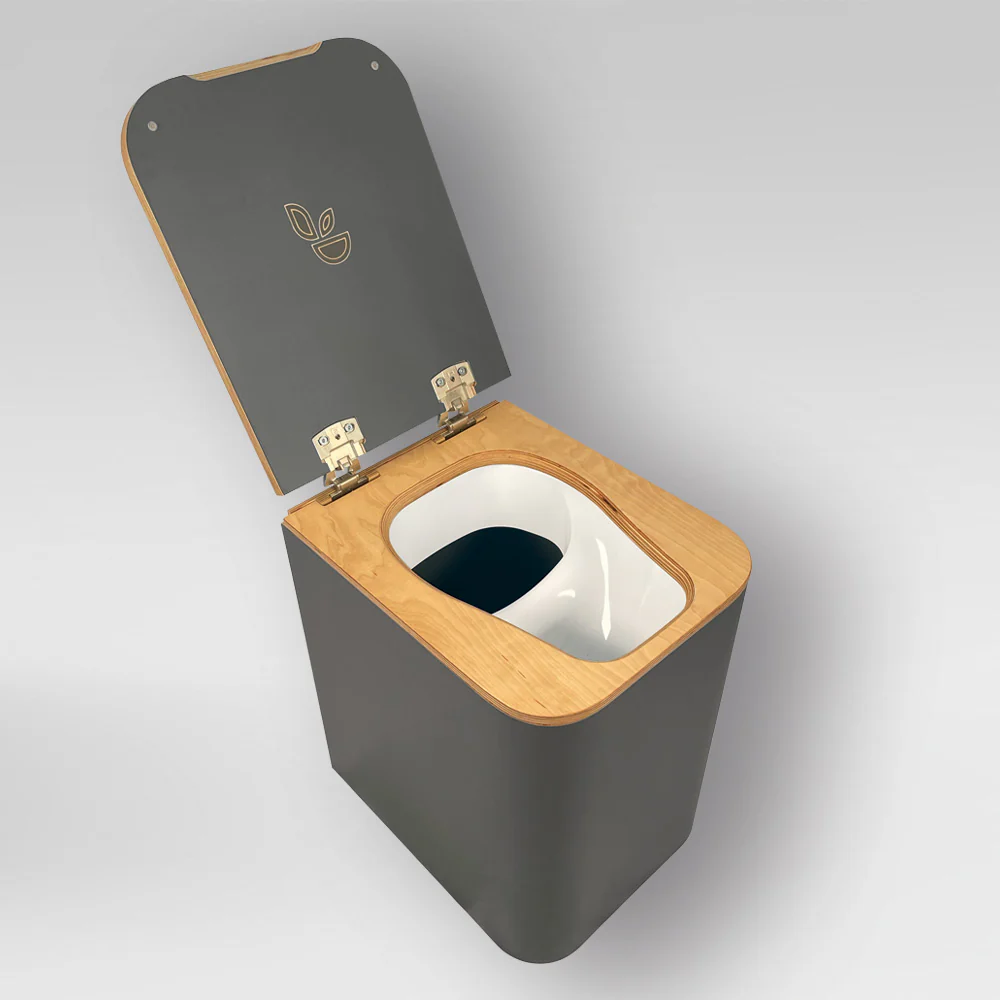

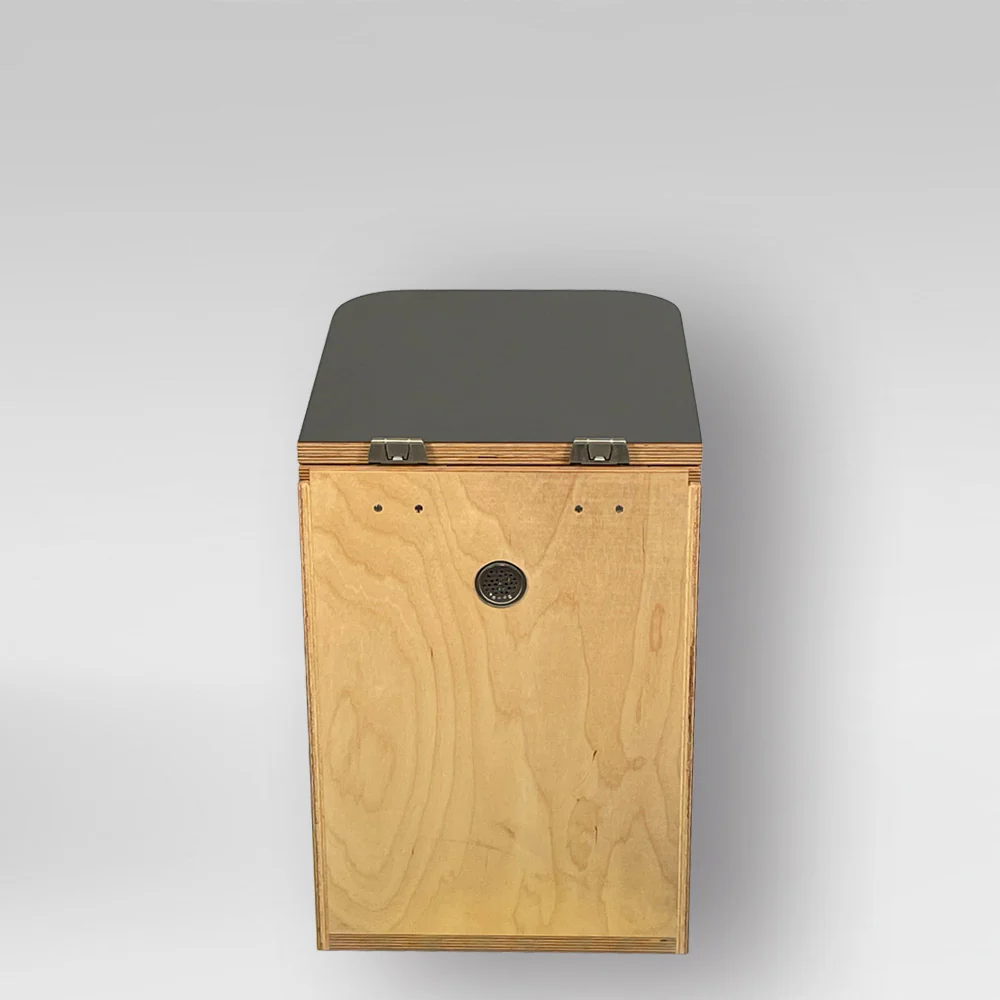

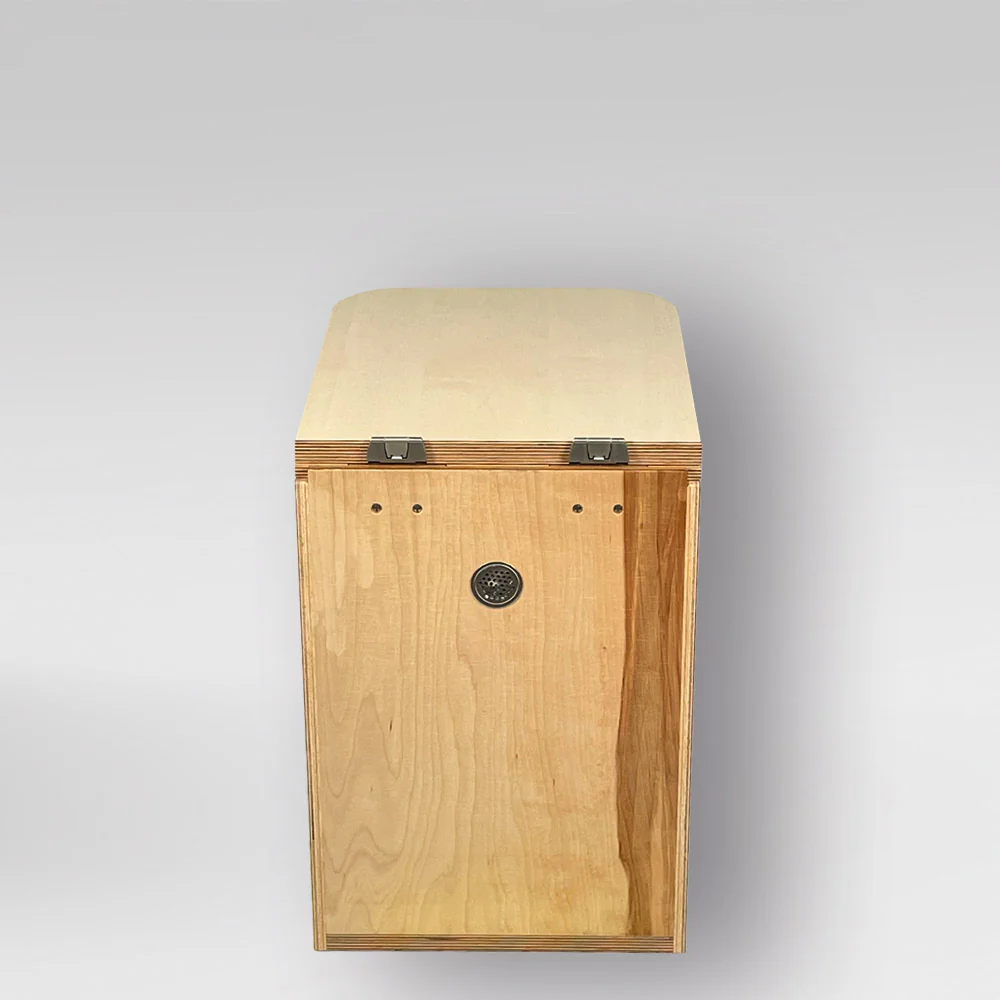

Our noble Trelino® Timber L made of birch wood with robust HPL finish available in
white, anthracite and nature.

Options:

• With and without fan set (without pilot hole)
• White or anthracite urine separator

The Trelino® Timber L is the alternative for your chemical toilet in the motor home. No matter where you travel with your camper and where you want to stay overnight. The Trelino® Timber L composting toilet is different:

• immediately ready for use
• no water and no chemistry necessary
• it can be disposed of (almost) everywhere and
• extra compact: only 38,6 cm deep and 31,6 cm wide
• comfortable seat height of 42,5 cm
• made of high quality wood
• robust and waterproof properties
• ideal for motorhomes, vans and garden sheds
• designed and manufactured in Germany

Scope of application

The Trelino® Timber L is the ideal dry composting toilet for:

• Motor homes with small toilet/bathroom area
• Camper as fixed toilet
• Vans/ buses as fixed toilet

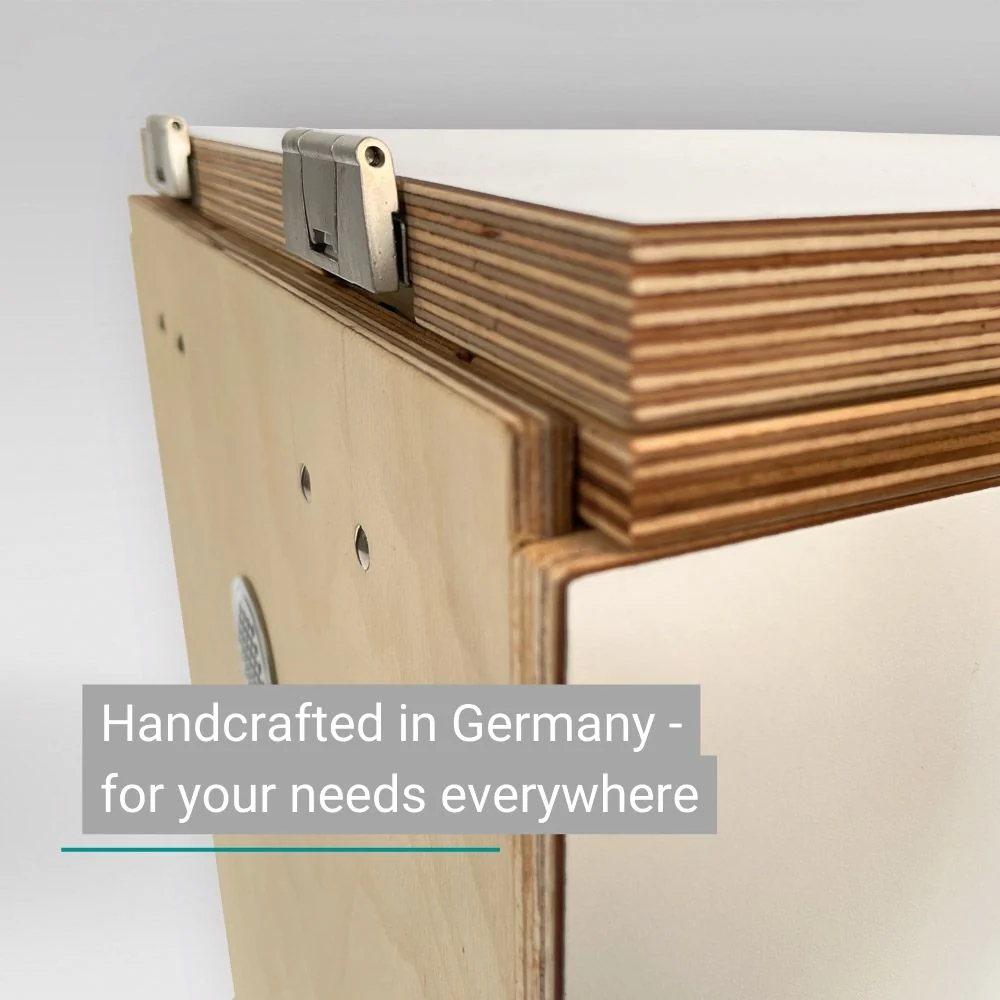

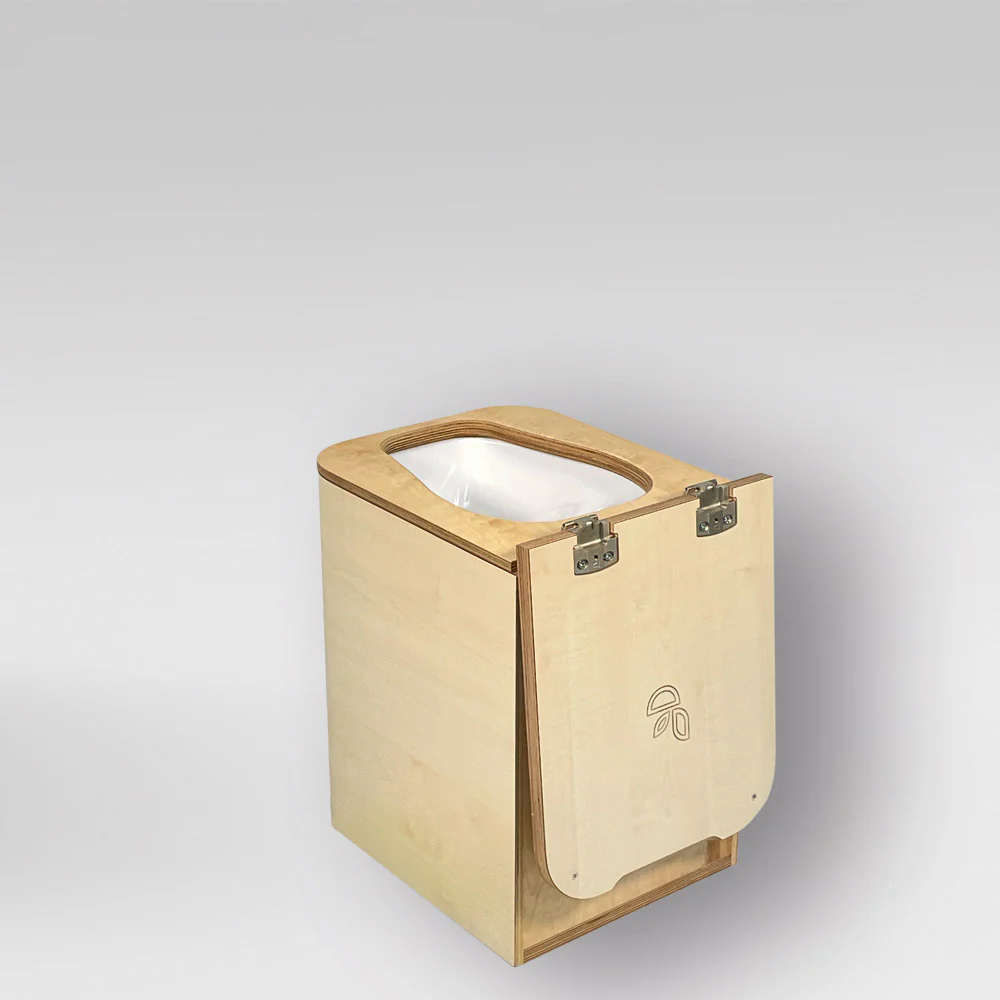

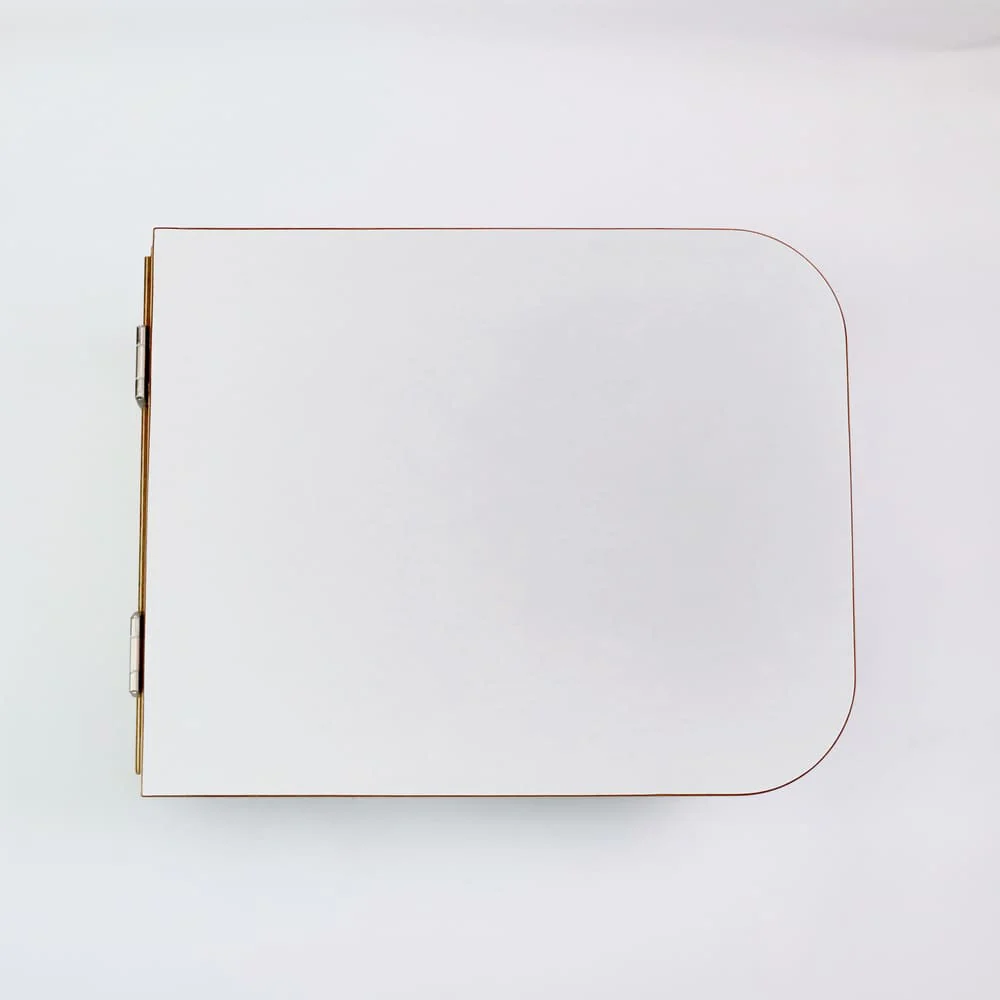

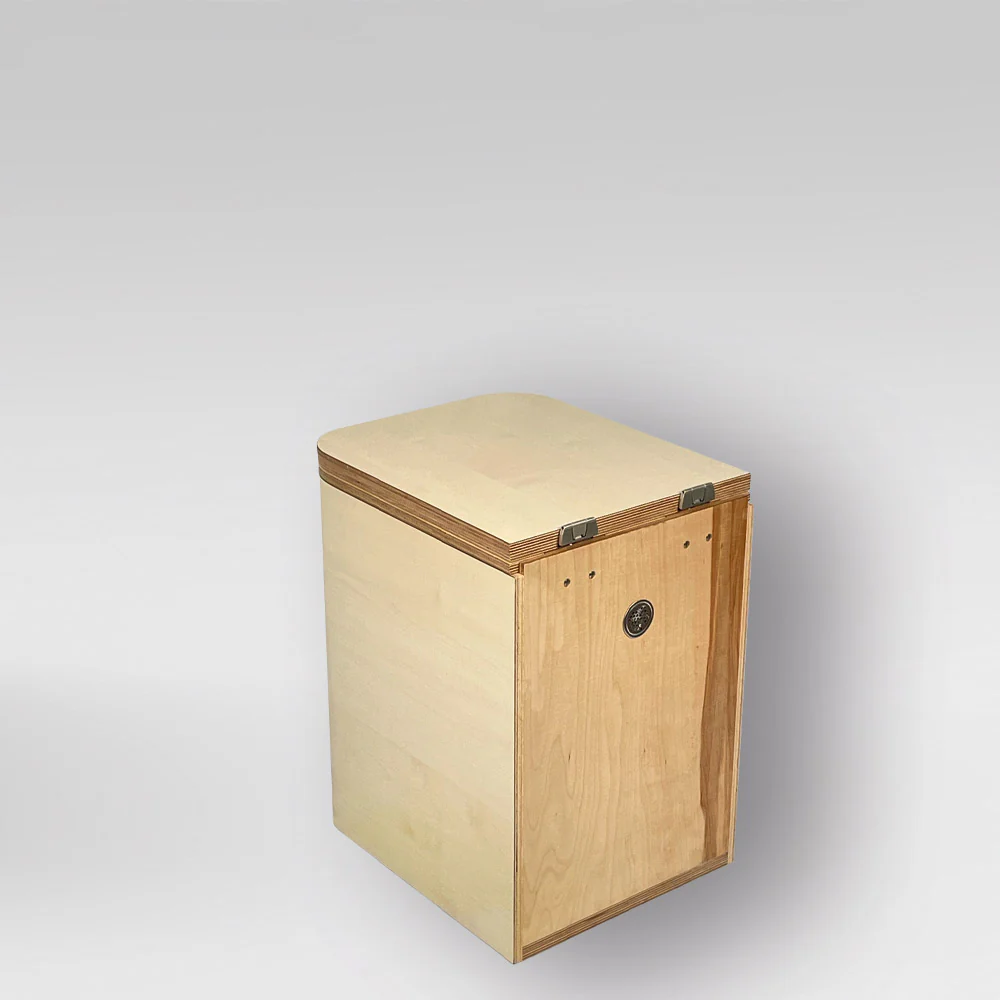

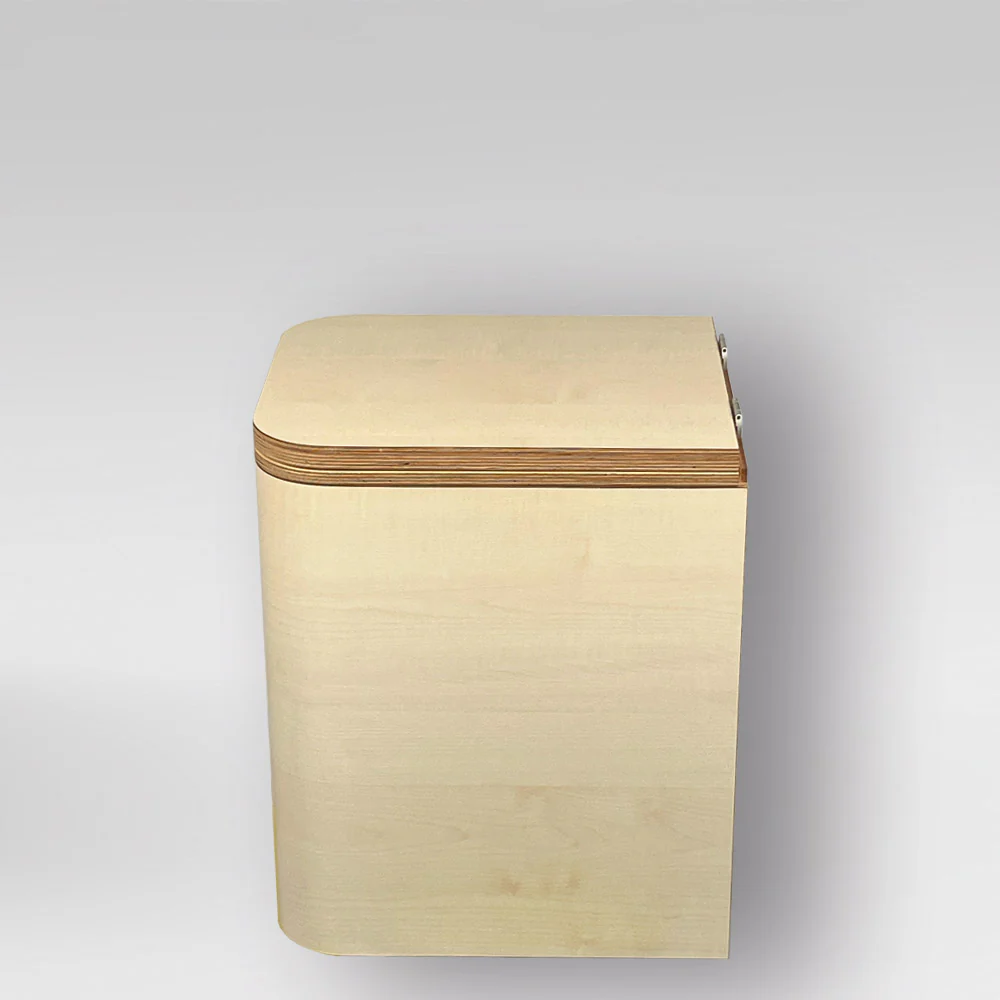

The Trelino® Timber L compost toilet is manufactured to a particularly high standard. During production, precise milling work and assembly by master craftsmen in the heart of the Rhineland intertwine. The wooden compost toilet is made of birch, a particularly stable wood with a robust surface. The wood is known for its excellent gluing properties and high resistance with natural wood look. The attached wooden lid is flush with the body and does not protrude backwards when opened.

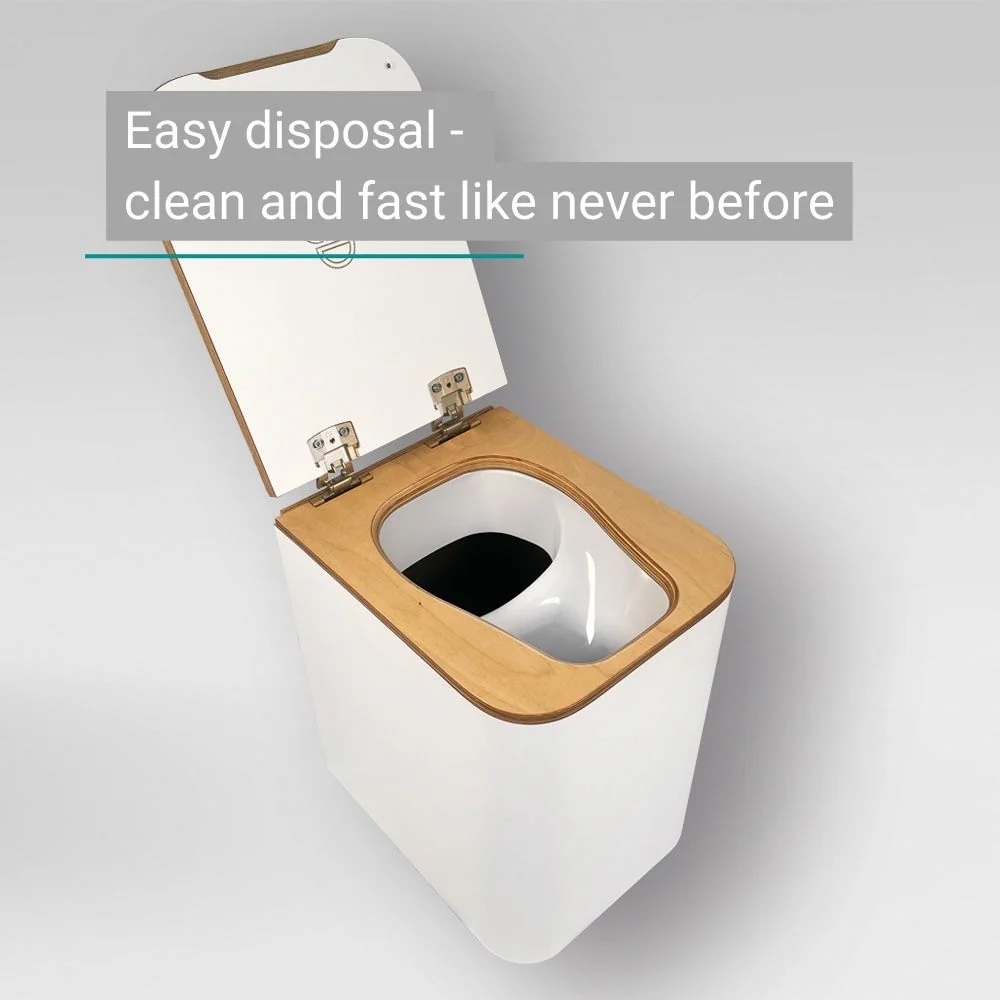

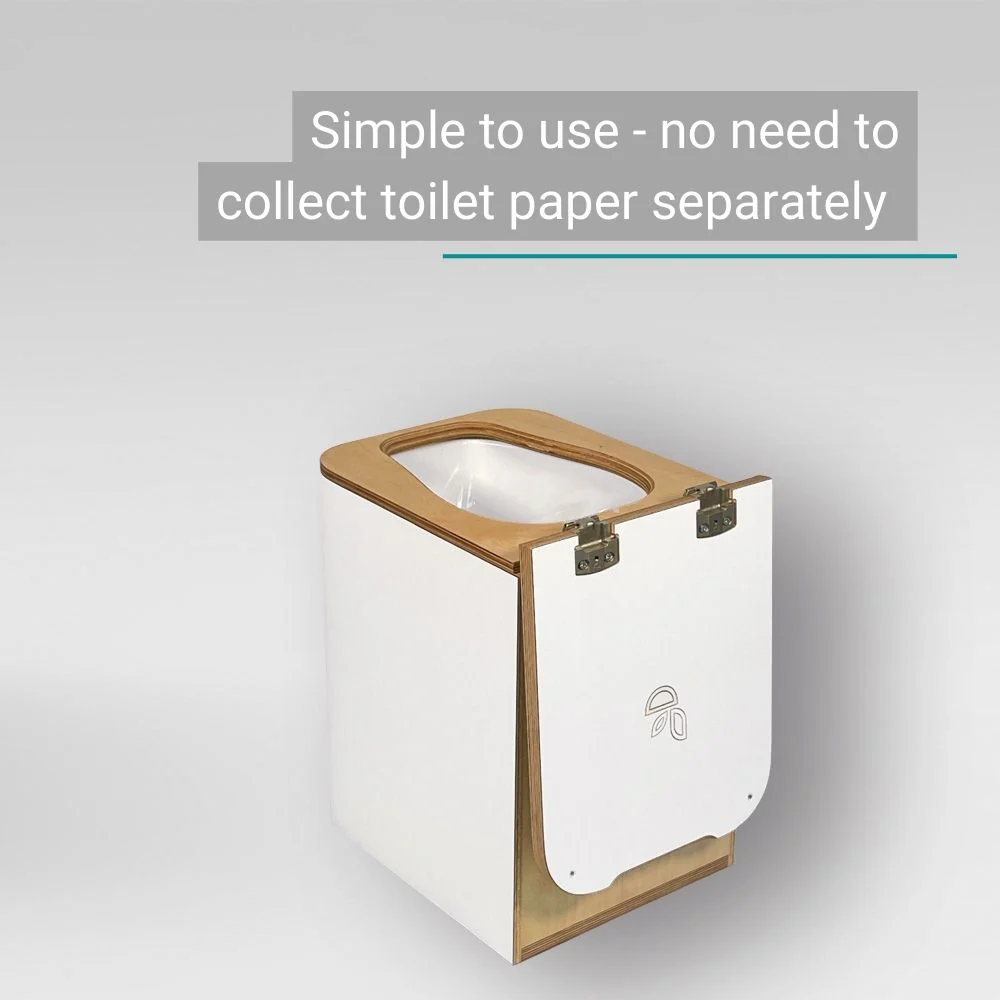

The toilet seat is form-fitted from above and sits precisely on the robust body. The Trelino® Timber L impresses with its simple yet elegant look with rounded edges. The rounded radii allow the thighs to rest comfortably when sitting and enhance the velvety-soft feel of the seat. The included divider insert ensures maximum freedom of movement. Another addition is hidden inside the box: a second, closing lid (DN 100) is recessed into the base and can be used at any time for manual transport of the urine canister and then put back again.

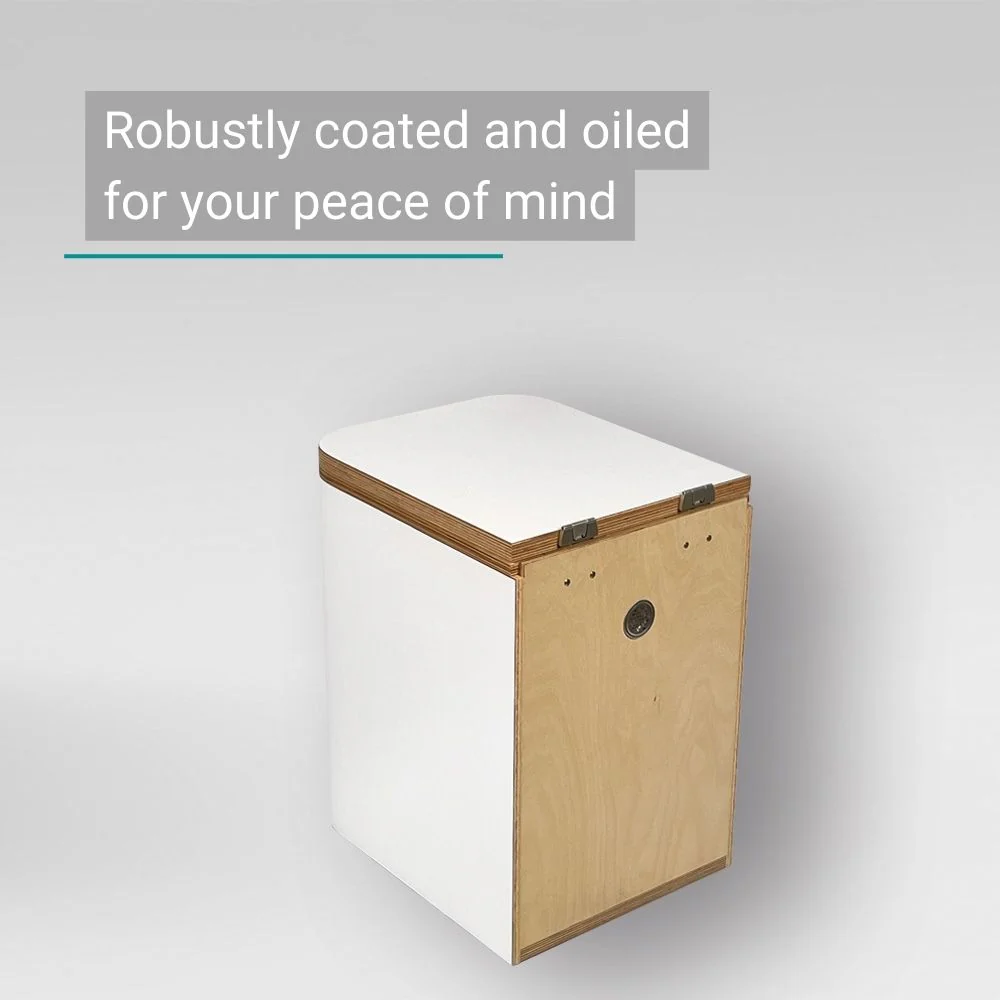

The Trelino® Timber L has a robust HPL coating and is therefore insensitive to fingerprints as well as scratch resistant.

The Trelino® Timber L composting toilet is specially designed for small spaces, to be installed even in the smallest bathrooms, for example in the Tiny house. Due to its compact design, the Trelino® Timber L does not require more space than the common fixed chemical toilets. It has a comfortable toilet seat molded on and can score with its seat height of 42,5 cm with comfort. The basic material of Trelino® Timber L is glued waterproof and has a high resistance to water and moisture. The material does not swell when wet. Therefore, the Trelino® Timber L can also be used in damp rooms.

Due to the separation of urine and solids, no chemicals are needed. Your natural excretions remain natural and can therefore be easily disposed of (e.g. in household waste, on the compost). You don't need to drive to a disposal station anymore, it replaces the chemical toilet in your vehicle.

The Trelino® Timber L composting toilet has numerous advantages over a normal chemical toilet. It is always ready to use. It needs neither water nor chemicals. Thus, your whole vehicle does not smell of chemicals and you do not senselessly consume precious water, which you later have to dispose of again.



Handling

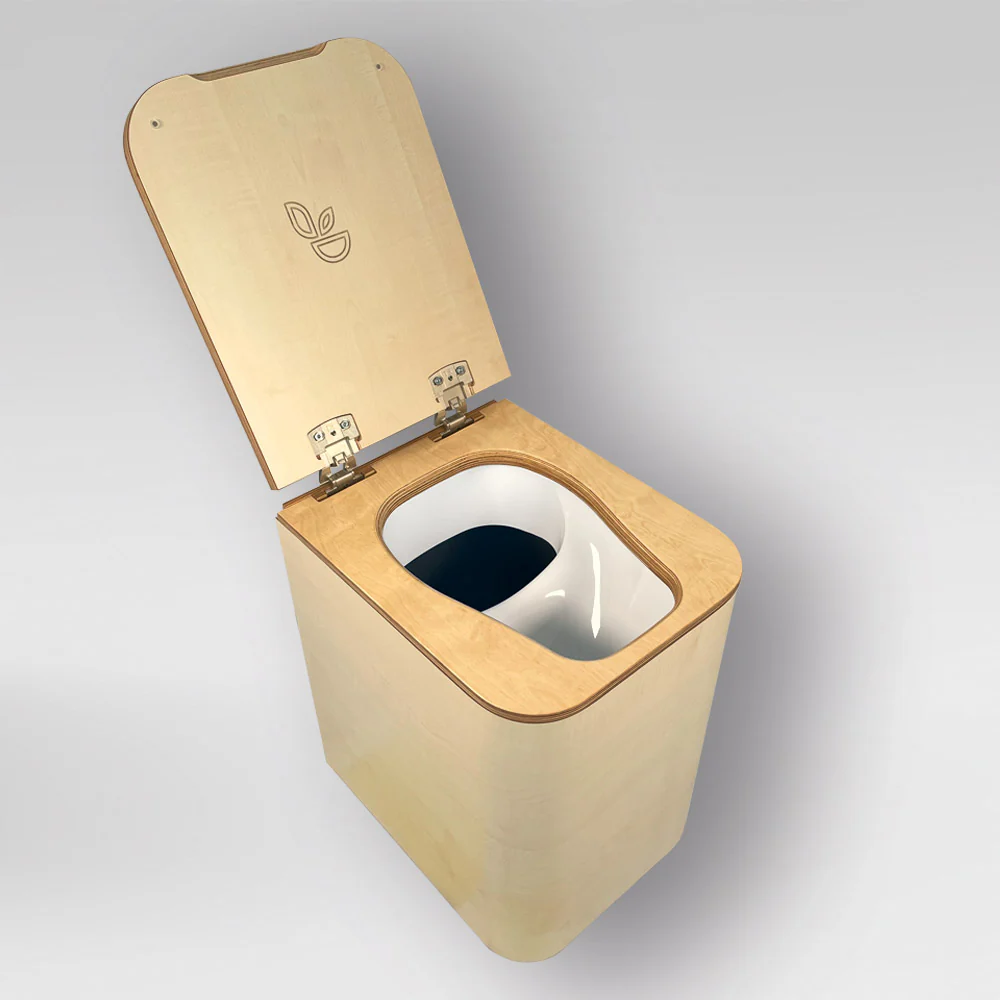

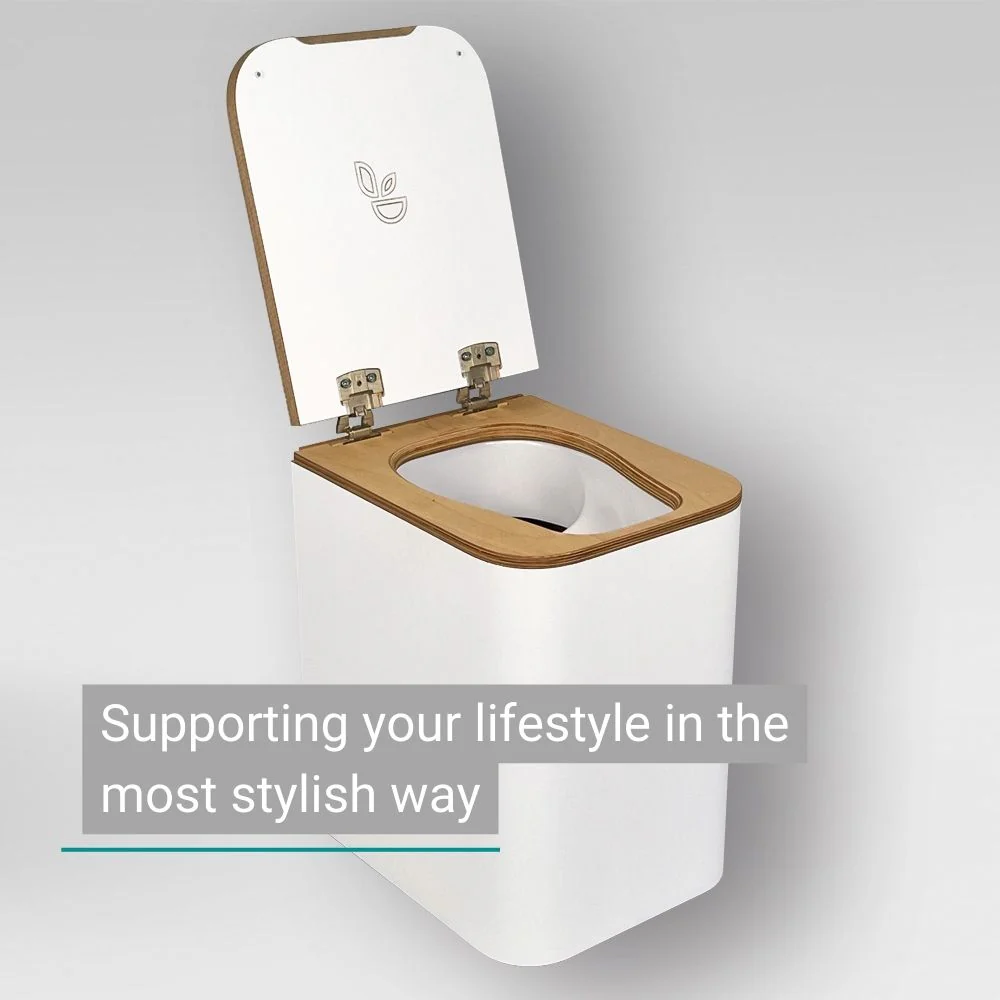

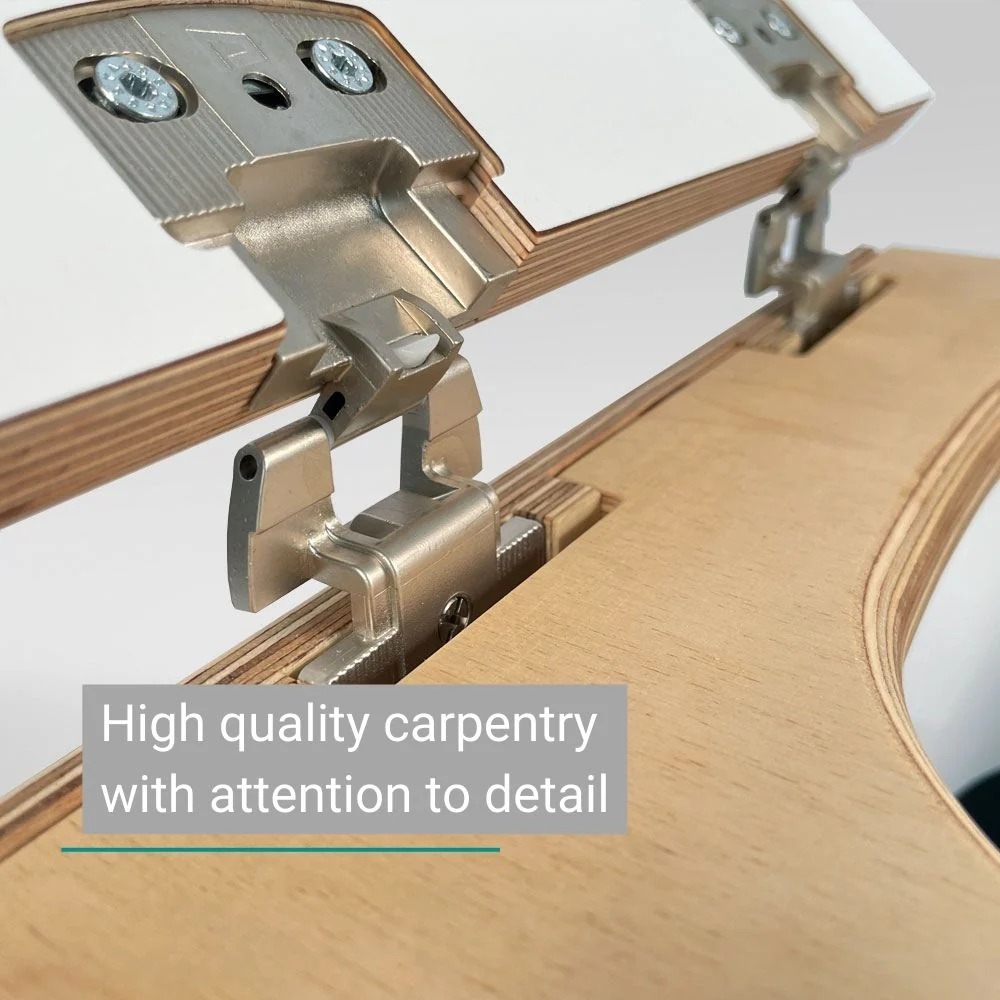

Unlike the well-known compost toilets available on the market, the Trelino® Timber L round is very compact and thus fits in most, small bathrooms. The Trelino® Timber L has a wooden lid, which is attached with hinges embedded in the wood and can thus be conveniently folded up. Intervention aids also make handling easier. In order to have both hands free for the removal of the contained containers, a plug-in mechanism is integrated to fix the separating insert meanwhile. The containers are optimized and handy for convenient emptying. The compact and lightweight design makes the Trelino® Timber L suitable as both a portable and a permanently installed toilet solution.

The urine canister with a capacity of 10 l is usually sufficient for 2 persons for approx. 2-3 days. This can be easily removed and transported to the next disposal option. The solids container is also removable and can thus be emptied more easily. So that you can also dispose of the solids in the residual waste, we recommend the use of bags, which you simply insert into the solids bin. The 10.6 l container is sufficient for about 17-25 sessions.

After each visit to the toilet, we recommend that you sprinkle litter over your solids. This supports the drying process and immediately creates a dry surface to prevent odors.

To remove the containers, please take off the toilet seat and lid and pull up the separator insert using the access hole. You can then easily insert it into the plug-in mechanism in the body. You can then simply remove the individual containers. For transporting the urine canister, a closed lid is also integrated in the base of the separation toilet, which can simply be screwed onto the canister and then stowed away again in the base of the box.

Material, Dimensions and Weight

Material:

• Case and lid: wood birch multilayer with HPL coating in:
  white, anthracite or natural
• Base material is waterproof glued, oiled and particularly resistant
• Hinges: Stainless steel
• Dividing insert: High gloss surface made of ABS (Acrylonitrile Butadiene Styrene), acid resistant PMMA coating
• Container: Polyethylene (PE), recyclable, acid resistant

Dimensions:

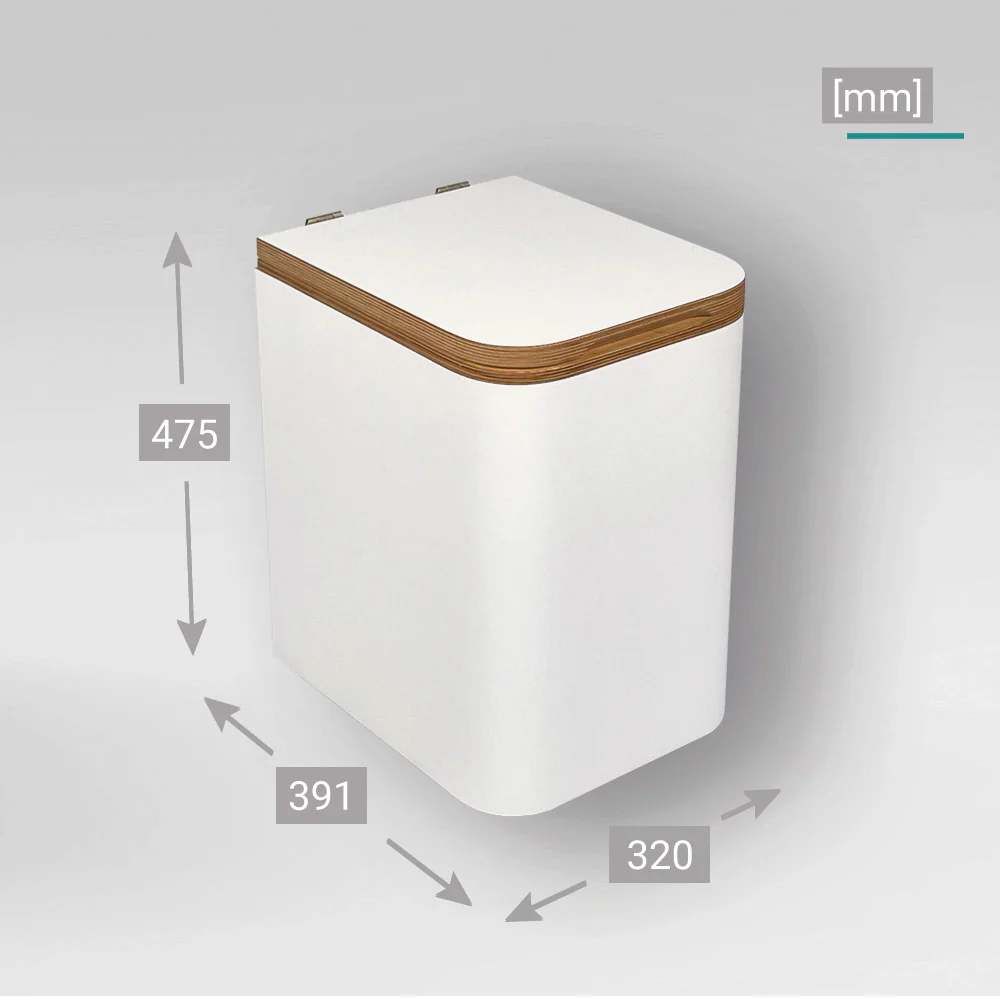

• (W/D/H) 31,6 x 38,6 x 46,8 cm

• Seating height: 42,5 cm

• Urine canister: 10 l
• Solids container: 10,6 l

Weight:

• Particularly light and compact at 8.2 kg
• Loadable up to approx. 150 kg

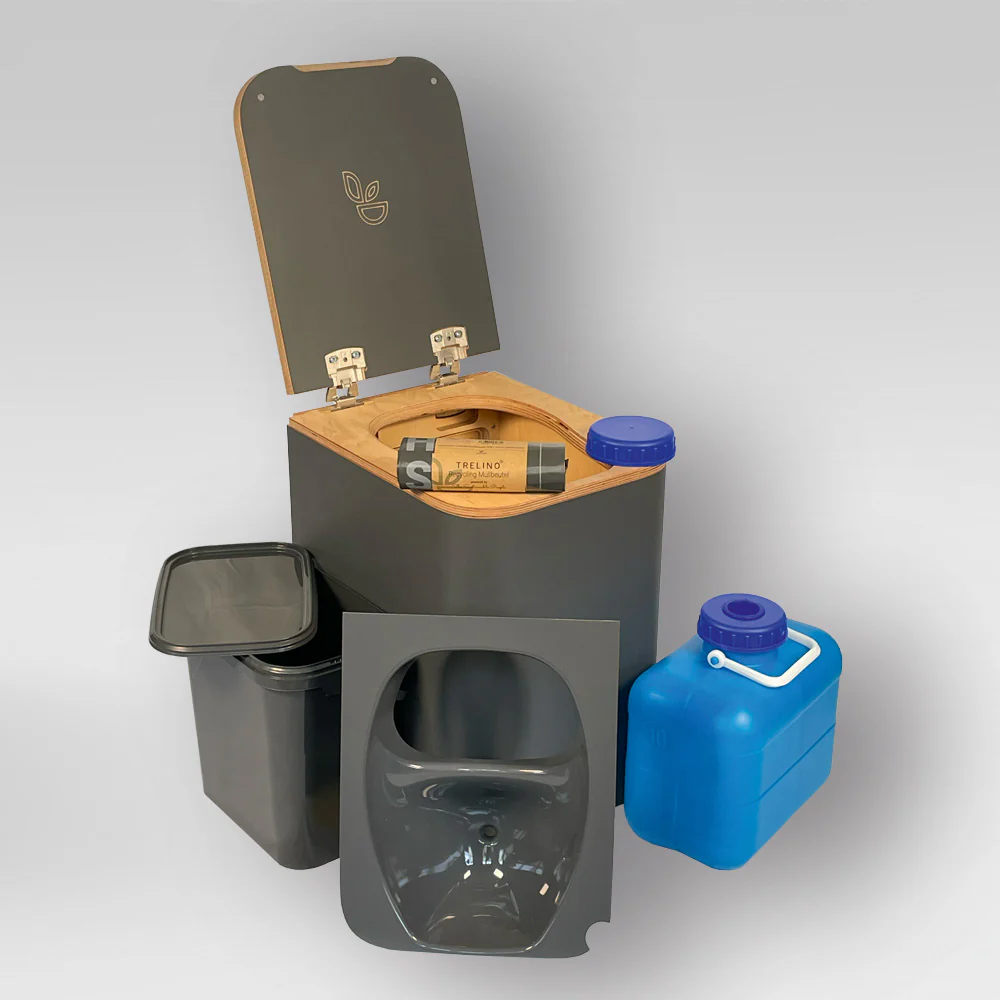

Scope of delivery

• Housing made of wood in the ordered color
• Toilet seat incorporated into the top of the toilet
• Separating insert in ordered color
  made of ABS with acid-resistant PMMA coating
• Urine canister 10 l incl. membrane cap

• Additional closed lid for transport of the urine canister (DN 100)
• Solid waste bucket 10,6 l
• Hinged wooden lid
• selectable with fan set (without pilot hole)
  Please note that the hole in the housing must be drilled by yourself. We recommend circular hole saw/ Forstner drill 38-40 mm
